Model No: Color Steel Tile Roof Mount-Elevated Bracket
Color Steel Tile Roof Mount-Elevated Bracket

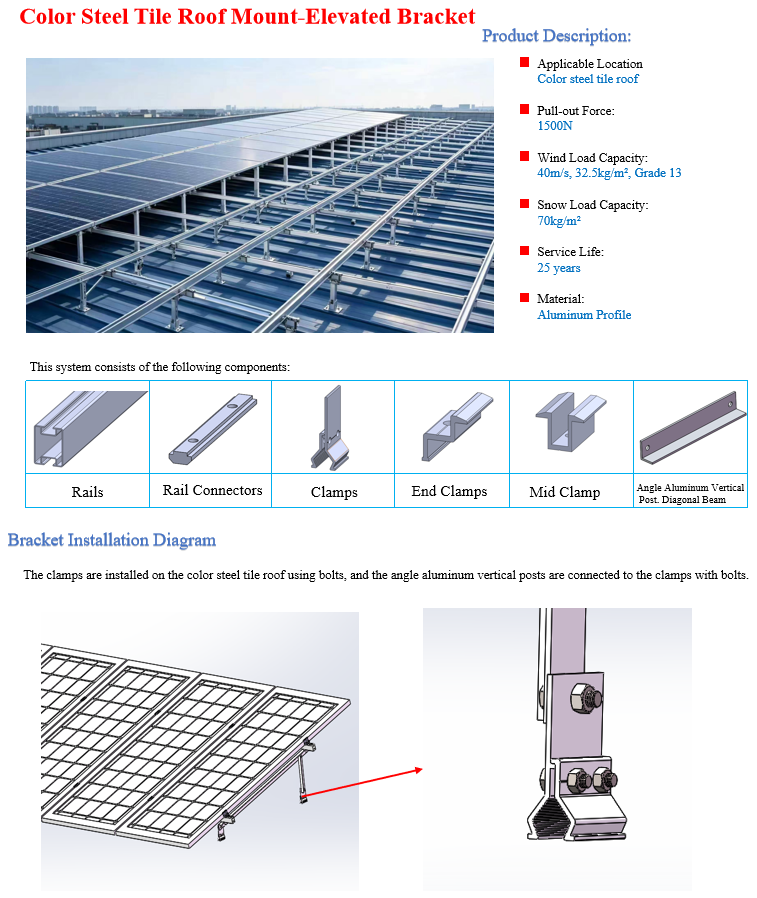

Color steel tile roof elevated PV mounting brackets are specially designed for solar installation on profiled color steel tile rooftops. Constructed from corrosion-resistant anodized aluminum alloy and stainless steel fittings, they work seamlessly with our PW sliding rail series. The elevated design boosts ventilation under panels to optimize power generation, avoids direct roof pressure and reduces waterproofing risks. Pre-assembled modular parts enable quick on-site installation, widely suitable for industrial and commercial color steel tile rooftop solar projects.
Quantity :
| Component Name | Material | Performance | Application Scenarios |
| Rails | Anodized aluminum profile | High strength, anti‑corrosion, good load‑bearing capacity | Main rail for mounting PV panels, transfers panel load to roof fixtures |
| Rail Connectors | Anodized aluminum profile | High splicing rigidity, anti‑aging | Connect two sections of rails to extend overall rail length |
| Clamps (Roof Clamps) | Anodized aluminum profile | 1500N pull‑out resistance, weather‑proof | Fasten onto color‑steel tile roof, serve as base support for whole bracket system |
| End Clamps | Anodized aluminum profile | Insulating, anti‑slip, stable clamping | Secure the outer edge of solar modules on rails |
| Mid Clamp | Anodized aluminum profile | Uniform clamping force, corrosion‑resistant | Fix the gap between two adjacent PV modules |
| Angle Aluminum Vertical Post & Diagonal Beam | Anodized aluminum profile | High structural stiffness, anti‑deformation | Elevated vertical & diagonal support members, lift panels above color‑steel tile roof |
