Model No: Color Steel Tile Roof Mount -Trapezoidal Clamp

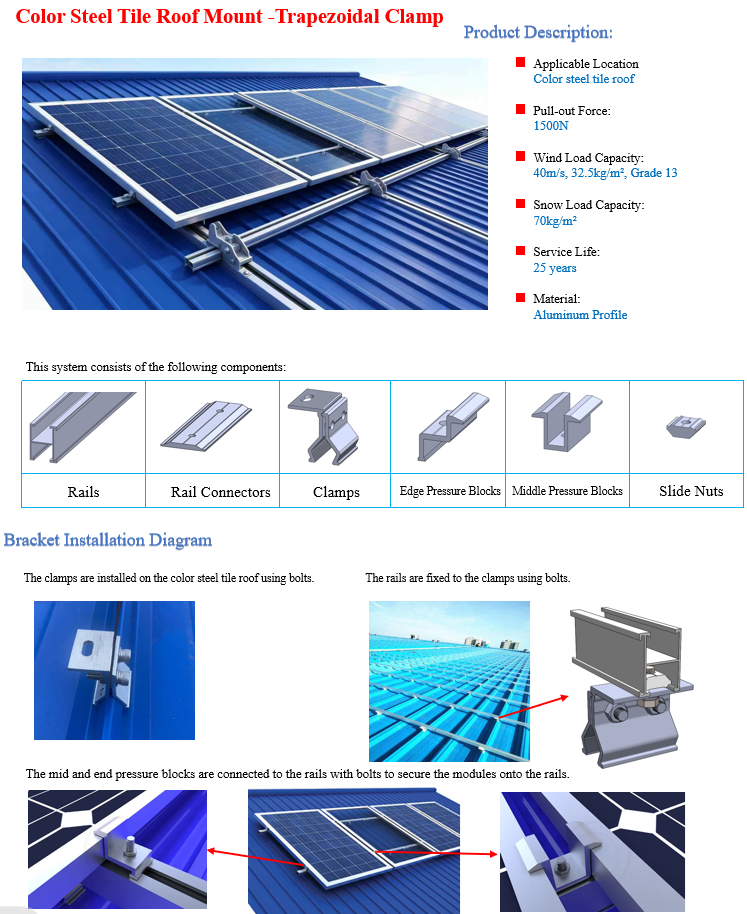

Color Steel Tile Roof Mount -Trapezoidal Clamp
This mounting solution is designed for trapezoidal‑profile color steel tile rooftops. Equipped with specialized trapezoidal clamps made of high‑strength stainless steel and anodized aluminum alloy, the system achieves firm fixation by clamping onto tile ridges without penetrating roof sheets to eliminate leakage risks. Fully compatible with our PW‑series sliding rails, it supports fast on‑site assembly and stable load‑bearing capacity, delivering a reliable solar mounting solution for trapezoidal color‑steel‑tile roof projects.
Quantity :
| Component Name | Material | Performance | Application Scenarios |
| Rails | Anodized aluminum profile | High load-bearing capacity, corrosion resistance, excellent weather resistance | Main support rail for solar panels, transfers system load to roof clamps |
| Rail Connectors | Anodized aluminum profile | High splicing rigidity, anti-aging, stable connection performance | Connect separate rail sections to extend rail length for large photovoltaic arrays |
| Clamps (Trapezoidal Clamps) | Anodized aluminum profile | 1500N pull-out resistance, high structural stiffness, fit trapezoidal roof ribs | Fixed on trapezoidal color steel tile roofs as the base fixture of the whole bracket system |
| Edge Pressure Blocks (End Clamps) | Anodized aluminum profile | Insulation, anti-slip property, reliable clamping force | Fasten the outer edge of PV modules onto the mounting rails |
| Middle Pressure Blocks (Mid Clamps) | Anodized aluminum profile | Uniform clamping pressure, long anti-corrosion service life | Secure the splicing gap between two adjacent solar modules |
| Slide Nuts | Anodized aluminum alloy (with stainless steel thread insert) | Flexible sliding positioning, anti-loosening, convenient on-site adjustment | Slides inside rail grooves to match bolt positions, realizes quick fastening and position adjustment during installation |
